Boreal Flow 55'' recirculation fan

Specifically crafted for high performance and low energy consumption

The Boreal Flow fan is engineered to optimize indoor climate conditions, contributing to healthy and productive dairy cattle. This 55’’ fan has an EC motor and a direct-driven impeller, making it energy-efficient and low-maintenance.

This recirculation fan has a remarkable design and is truly distinctive in the agricultural industry. The fan's energy-efficient motor and intelligent design ensure maximum performance and the required well-being of the livestock.

The Boreal Flow fan creates a pleasant house climate and contributes to healthy and productive dairy cattle. Quality ventilation and adequate air speed are especially crucial in hotter weather. Using Boreal Flow recirculation fans, you can prevent heat stress in the cows and optimize productivity.

Features and benefits:

Intelligent Design

• Optimized and unique design for high efficiency and maximum airflow

• Long throw – fewer fans to blow over a long distance

• Very robust and minimal maintenance

Quieter

• Engineered to produce less noise than conventional six-blade fans

Energy-efficient motors

• EC fans - variable control and low energy consumption

• Direct-driven impellers – no belt to be maintained

• IE5 and IP 66

• 1 or 3-phase motor 50/60 Hz

        *3-phase motor is powered by 3-phase current only

Noncorrosive materials

• Housing of SMC

• UV-protected materials

• Nylon impeller

• Guard of stainless steel

• Blades diameter: 55” (1395 mm)

Accessories

• Easy to install bracket mount or chain mounting

• Safety guards for intake and output

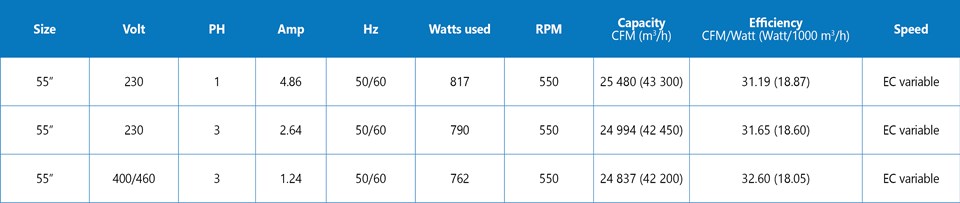

See the performance data below:

The test results show that Boreal Flow fan performs better!

Below are the test results comparing the performance and energy of the Boreal Flow 55'' with an equivalent fan from a competitor. The results reveal that the Boreal Flow fan consumes less energy while providing better performance.*

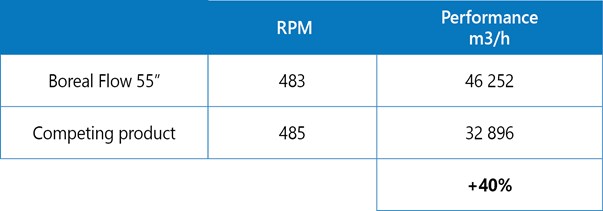

Maximum performance comparison

Boreal Flow provides 40% more airflow than the competitor's fan.

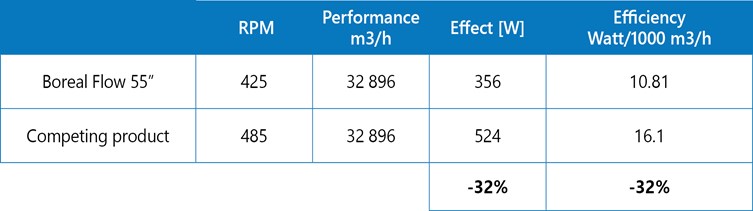

With the same airflow, energy consumption is 32% lower than the competitor's fan.

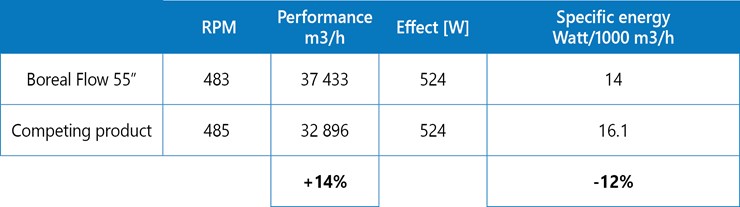

Equal energy comparison

With the same energy consumption, airflow is 14% higher than the competitor's fan. Specific energy is 12% lower than the competitor's fan.

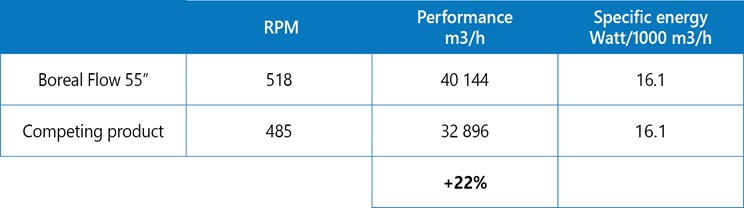

Equal specific energy comparison

With the same specific energy, airflow is 22% higher than the competitor's fan.

*Tested in the same controlled environment in the R&D lab under AMCA standards 230-20
